How Headphones Are Made: A Complete Manufacturing Guide
Explore the step-by-step process of headphone manufacturing—from drivers and diaphragms to housings and testing. Learn material choices, assembly, tuning, and quality control to understand what yields consistent sound and comfort.
Headphones are made through a layered process that builds drivers, diaphragms, magnets, housings, and wiring into a finished unit. This guide outlines the steps, materials, and testing methods used to transform raw components into headphones that sound balanced and comfortable. Expect a step-by-step look at production targets, quality checks, and common variations.
How headphones are made: from concept to finished product
The phrase how headphones are made captures a journey from initial design concepts through material selection, precision manufacturing, assembly, and final testing. This field combines acoustics, materials science, ergonomics, and quality control to produce devices that sound consistent and feel comfortable over long listening sessions. According to Headphones Info, the process balances acoustic goals with ergonomic considerations, and it evolves with newer driver technologies and sustainable materials as of 2026.
Anatomy of a headphone: drivers, diaphragms, magnets, and enclosures
A typical headphone contains several core components that determine sound and fit. The driver is the heart, converting electrical signals into mechanical motion. The diaphragm moves to push air and create sound waves, while magnets and coils generate the necessary magnetic field and voice coil interaction. The enclosure shapes the acoustic space, reduces unwanted resonance, and provides structural integrity. Together, these parts define the headphone’s tonal balance and leakage. Proper alignment and tolerances are essential; even tiny misalignments can affect soundstage and channel separation.
Core materials and components used in production
Manufacturers select a mix of polymers, metals, and composites for durability and performance. Common driver materials include lightweight diaphragms of treated paper, mylar, or polyimide, paired with lightweight magnets. Housings are often made from injected plastics or molded composites with metal accents or reinforcement ribs. Cables use copper conductors with insulation suitable for bending and wear. Ear cushions use memory foam or acoustic foam for comfort and passive isolation. Each choice balances cost, weight, and acoustic goals.
The driver: dynamic vs planar magnetic explanations
Dynamic drivers are the most common and rely on a voice coil attached to a diaphragm moving in a magnetic field. Planar magnetic drivers use a larger, flat diaphragm with evenly spaced magnets or a wire mesh, producing a more linear response and lower distortion but typically at higher cost. The choice affects frequency response, ”slam” in the bass, and openness of the sound. Manufacturers optimize the driver type to fit the target use case, whether they’re gaming headsets, studio monitors, or everyday wireless listening.
The diaphragm and sound chamber design
The diaphragm is a thin, flexible membrane that transforms electrical energy into mechanical motion. Its material properties—stiffness, damping, and mass—shape how the driver responds to different frequencies. The sound chamber around the driver controls resonance and ensures that sound waves propagate efficiently toward the listener. Designers tune the volume, venting, and internal reflectivity to achieve a balanced, accurate sound with minimal distortion.
Wiring, coils, and electrical considerations
A headphone’s electrical path includes coils, voice wires, and sometimes miniature PCBs for impedance matching, impedance switching, or active features. Copper wires must be thin yet reliable, with robust strain relief where the cable enters the ear cup. Soldering quality, insulation integrity, and strain relief determine long-term reliability. Careful routing avoids microphonic noise from cable movement and ensures consistent impedance across wear sessions.
Housing design, comfort, and sealing
The frame and cups must tolerate drops, heat, and wear while remaining comfortable for hours of use. Materials choices—rigid shells for stability and soft padding for comfort—impact user experience. Sealing against dust and sweat is common in sport models, while some designs emphasize transparency to improve acoustics. Ergonomics, weight distribution, and clamp force all influence perceived comfort and long listening sessions.

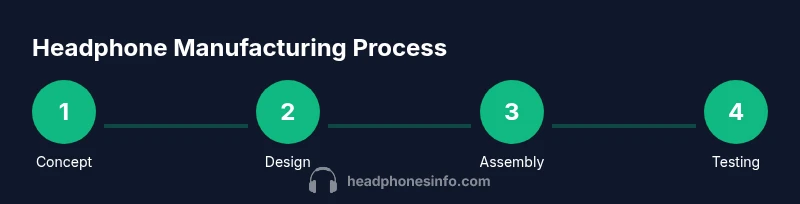

Assembly line flow: from parts to finished unit
Headphone assembly typically follows a staged approach: subassemblies (driver units, cables, cushions) are produced separately, then brought together on a line with torque checks, wiring harness connections, and functional tests. Quality checks are integrated at multiple points to catch mechanical misalignments and insulation defects. Efficiency comes from standardized fixtures, traceable parts, and clear assembly documentation.
Quality assurance and testing protocols
Manufacturers perform both mechanical and acoustic tests. Visual inspections ensure cosmetic quality and connector integrity. Electrical tests verify impedance, continuity, and short circuits. Acoustic tests measure frequency response, total harmonic distortion, and channel balance. In some facilities, end-to-end listening tests with trained testers supplement objective data to confirm the target sound signature.
Sustainability considerations and recycling
Many producers address sustainability by selecting recyclable plastics, responsibly sourced foams, and low-waste molding practices. End-of-life programs may offer take-back schemes or recycling guides for e-waste. Reducing weight and optimizing packaging also lowers material usage and transport emissions. These practices align with growing consumer expectations for responsible manufacturing.
Variations across headphone types: over-ear, on-ear, and in-ear
Headphone families differ in driver size, earcup shape, and cushioning. Over-ear designs typically provide strong passive isolation and comfort for long sessions. On-ear models trade some seal for portability. In-ear headphones prioritize small form factor and seal in a compact, pressure-controlled manner. Each type uses similar core components but tailors materials and fit to its intended use.
Tools & Materials
- Screwdriver set (Phillips #1 and #0)(For fasteners on housings and grilles)
- Soldering iron (60W)(For coil windings and wiring harnesses)
- Solder (lead-free)(Ensure clean joints and reliability)
- Multimeter(Check resistance and continuity)
- Calipers or micrometer(Verify critical tolerances)
- Hot glue gun(Additional strain relief and sealing)
- Foam padding material(Comfort and isolation)
- Electrical tape / heat shrink tubing(Insulation and protection)
- Cable-cutting tool(Precisely trim to length)
- Industrial-grade recycler or waste bin(Dispose of scrap materials responsibly)
Steps
Estimated time: 6-8 hours
- 1
Plan and design
Develop the target sound signature, comfort profile, and durability requirements. Create bill-of-materials and tolerances for the key components. Document testing criteria to ensure traceability.
Tip: Start with a clear target frequency response and ergonomic goals. - 2
Source components and validate supply
Select drivers, magnets, diaphragms, housings, and cables with consistent quality. Run supplier audits and sample tests to confirm performance matches specs.
Tip: Keep a supplier scorecard to monitor ongoing quality. - 3
Manufacture drivers and diaphragms
Produce or source drivers with controlled mass and stiffness. Form diaphragms using materials that meet damping and fatigue requirements.
Tip: Inspect diaphragms for tears or creases before assembly. - 4
Wind coils and assemble voice coils
Create precise windings with correct turns, resistance, and insulation. Attach to the diaphragm with secure mounting.
Tip: Avoid loose windings to prevent buzzing. - 5
Build the magnet and coil assembly
Align magnets and coils to ensure even magnetic flux and linear response across the intended range.
Tip: Check spacing with a feeler gauge to prevent rubbing sounds. - 6
Assemble the electrical harness
Route wires, solder joints, and apply strain relief. Verify connector compatibility with the chosen cable type.
Tip: Label harnesses for traceability. - 7
Prepare the ear cups and padding
Mold or attach padding, add fabric or leather coverings, and install acoustic foam as needed.
Tip: Ensure padding compresses evenly for comfort. - 8
Mount driver assemblies into housings
Fit drivers into enclosures, seal edges, and secure with screws without over-tightening.
Tip: Use torque specs to avoid warping or leaks. - 9
Attach cables and finalize wiring
Connect cables to drivers and harnesses, then seal entry points to prevent dust ingress.
Tip: Test continuity before final sealing. - 10
Install protective grilles and aesthetics
Add grilles, cosmetic finishes, and external shells. Confirm alignment and visual quality.
Tip: Mark assemblies to prevent mix-ups on the line. - 11
Quality checks and functional tests
Perform impedance, leakage, and frequency response checks. Conduct a quick listening test to verify tonal balance.
Tip: Log test results to identify drift over time. - 12
Packaging and final QC
Package with protective inserts, label product details, and run a final cosmetic and functional review before shipping.
Tip: Include a warranty card and user manual for customer satisfaction.
People Also Ask
What is the main difference between dynamic and planar magnetic drivers?
Dynamic drivers use a moving coil and diaphragm for sound; planar magnetic drivers rely on a large, flat diaphragm with a consistent magnetic field for low distortion. Each approach yields a distinct tonal character and cost profile.
Dynamic drivers use a moving coil and a small diaphragm for sound, while planar magnetic drivers use a larger, flat diaphragm for lower distortion. The choice affects tone and cost.
How long does headphone manufacturing take on a production line?
Production time varies by scale, but modern lines aim for efficient cycles with standardized subassemblies, automated tests, and quality checks integrated throughout. Mass production reduces per-unit time compared with prototyping.
Production time varies, but mass production uses standardized subassemblies and automated tests to stay efficient.
Are headphones tested after assembly?
Yes. Manufacturers perform impedance, leakage, frequency response, and durability tests, followed by a quick listening check. Objective measurements accompany subjective assessments to ensure consistency.
Yes. Impedance and frequency tests are standard, plus a quick listening check for consistency.
What materials are most commonly used in headphone construction?
Common materials include polymers for housings, copper for wiring, magnets for drivers, foams for padding, and protective fabrics. Material choices balance durability, weight, acoustic performance, and cost.
Headphones use polymers, copper wires, magnets, foam padding, and fabrics. Choices balance durability, weight, and cost.
What safety standards apply to headphone manufacturing?
Manufacturers adhere to general safety standards for electronics and consumer products, with testing for insulation, heat resistance, and chemical safety as part of quality control. Certifications may vary by region.
Electronics safety standards cover insulation and heat resistance during QA.
What design variations exist among headphone types?
Over-ear, on-ear, and in-ear designs all share core components but differ in cup size, padding, and seal. Each design targets different use cases, comfort levels, and portability needs.
Over-ear, on-ear, and in-ear designs share core parts but vary in size and seal for different uses.
Watch Video
What to Remember
- Plan with target specs before production.
- Driver choice impacts overall sound and cost.
- Quality checks are embedded at multiple steps.
- Ergonomics and materials drive comfort and durability.
- Sustainability practices matter to brands and buyers.
