What Size Headphone Jack for Guitar Amp: A Practical Guide

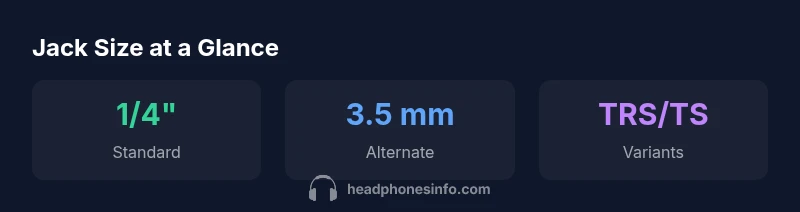

Understanding the common jack sizes on guitar amps

For players shopping for headphones or planning late-night practice, knowing the standard sizes helps avoid dead ends at the studio. The keyword 'what size headphone jack for guitar amp' is central to this topic. According to Headphones Info, the majority of guitar amplifiers use a 1/4 inch (6.35 mm) output for the instrument input and headphone out. This size has a long history in pro audio, offering durability and reliable contact in live settings. In practice, you’ll see two common variants: a straight 1/4 inch TS (mono) or a 1/4 inch TRS (stereo or balanced) jack. Some amps will offer a separate 3.5 mm headphone output, usually on practice or small combo models, or they’ll provide a 3.5 mm-to-1/4 inch adapter to bridge the gap. When in doubt, always verify the exact jack type by checking the label on the chassis, consulting the manual, or measuring the opening with a precise caliper. The reason this matters is not just compatibility; impedance, contact reliability, and physical fit all influence whether headphones stay seated and deliver clean tone.

How to identify the jack size on your amp

Start by locating the headphone or instrument jack on the back or side panel. Read the engraving near the port or consult the user manual; manufacturers often print the size right next to the socket. If this isn’t visible, measure the inner diameter with calipers or a precise ruler. Count on common options: 1/4 inch (6.35 mm) connectors, typically TS or TRS; or a smaller 3.5 mm (0.14 inch) option on compact practice amps. Inspect the plug you plan to use (the headphone plug) and compare it to your amp’s port. If you’re upgrading from a two-conductor mono cable to a stereo headphone setup, ensure the jack type (TS vs TRS) aligns with the amp’s output. When in doubt, photograph the port and cross-check with the model number online. This approach saves you time and helps avoid misfits, crackling contacts, or reduced volume caused by mismatched connectors.

Using adapters and cables: when to convert 1/4 to 3.5 mm

Adapters exist to bridge 1/4 inch and 3.5 mm jacks, but they aren’t universal solutions. If your amp has only a 1/4 inch output, you can use a robust 1/4 inch to 3.5 mm adapter to connect standard headphones or earbuds. Conversely, some amps provide a dedicated 3.5 mm output; in that case, use a 3.5 mm cable, then step up to 1/4 inch if needed for studio monitors. When selecting adapters, choose ones with quality contacts and proper shielding to minimize channel crosstalk and signal loss. Avoid cheap adapters that introduce audible crackle or intermittent connections. If you’re using TRS-equipped headphones, confirm whether the amp’s 1/4 inch socket is TRS-capable; some devices label it clearly, others require trial and error. Finally, test both channels at a comfortable listening level before heavy practice or recording sessions.

Safety and signal quality considerations when connecting headphones

Headphone connections can affect volume consistency and tone; loud practice sessions risk hearing damage and equipment stress. Always set the amp’s master volume to a low level before plugging in, then increase gradually while listening for clipping or harsh high frequencies. If you’re using a high-impedance headphone with a low-power amp, you may hear weak bass or reduced volume; consider a more capable headphone or a small headphone amp pedal. Keep cables tidy to prevent tugging, which can crack the jack. When using adapters, verify that the adapter doesn’t introduce loose contacts which degrade the signal. If you notice crackling, unplug, reseat, and re-test with a different cable. These steps help preserve tone quality and protect both your ears and the gear.

Impedance and sensitivity: what headphones work best with guitar amps

The interaction between amp output, headphone impedance, and sensitivity determines perceived loudness and tone. For many amps, low-impedance headphones (around 32 ohms) are easiest to drive and give quick transient response; higher-impedance models (roughly 100–600 ohms) can sound more controlled but may require more drive. If your amp struggles to reach volume with comfortable listening, pair it with a headphone that has moderate impedance and high sensitivity. Also consider cable length and connector quality; longer cables can add resistance that affects loudness. In practice, testers have found that a well-matched 32-ohm or 40-ohm headphones with a TRS plug balances clarity and ease of use on typical practice amps. This balance helps you avoid listening fatigue during long sessions.

Practical pairing guides: recommended headphone categories by jack type

• For 1/4 inch jack outputs: over-ear headphones with low impedance (32–40 ohms) and good isolation deliver the best balance of tone and loudness.
• For 3.5 mm outputs: compact headphones or earbuds, preferably with a straight 3.5 mm plug and a robust, kink-resistant cable.
• For TRS-compatible amps: seek headphones with true stereo balance and even driver response to preserve stereo cues in effects.
• If you use adapters: prioritize high-quality shielding and a short adapter length to minimize signal loss and phase shifts.
• For recording setups: consider headphones that reveal bass texture and midrange clarity so you can troubleshoot mic and room interactions accurately.

Quick-reference: a decision workflow for players

1. Identify the jack size on your amp (1/4 inch or 3.5 mm).
2. If 1/4 inch, confirm TS vs TRS and whether two-channel listening is supported.
3. If 3.5 mm, check if a direct 3.5 mm headphone output exists or if you need an adapter.
4. Check your headphone impedance and aim for 32–40 ohms for easy drive.
5. Test with a known good pair and avoid cheap adapters that degrade signal.

Common mistakes to avoid

• Assuming any headphone will work with any jack size; mismatches create crackling or no sound.
• Skipping impedance considerations; underpowered amps can sound thin on high-impedance headphones.
• Overlooking safety; never crank volume with new connectors to avoid ear damage.
• Relying on a cheap adapter for long sessions; poor shielding increases noise and channel bleed.
• Forgetting to recheck after changing cables; always verify both channels listen for even balance.

How to test and verify sound after connection

Begin with a low volume and a familiar track. Listen for channel balance, tonal balance across lows, mids, and highs, and any crackling at the jack or adapter. Swap to another headphone set to compare symmetry. If you hear hiss, hum, or harsh peaks, re-seat connectors, try a different cable, and inspect the adapter for wear. Finally, confirm that panning and stereo effects are preserved when using TRS headphones.
